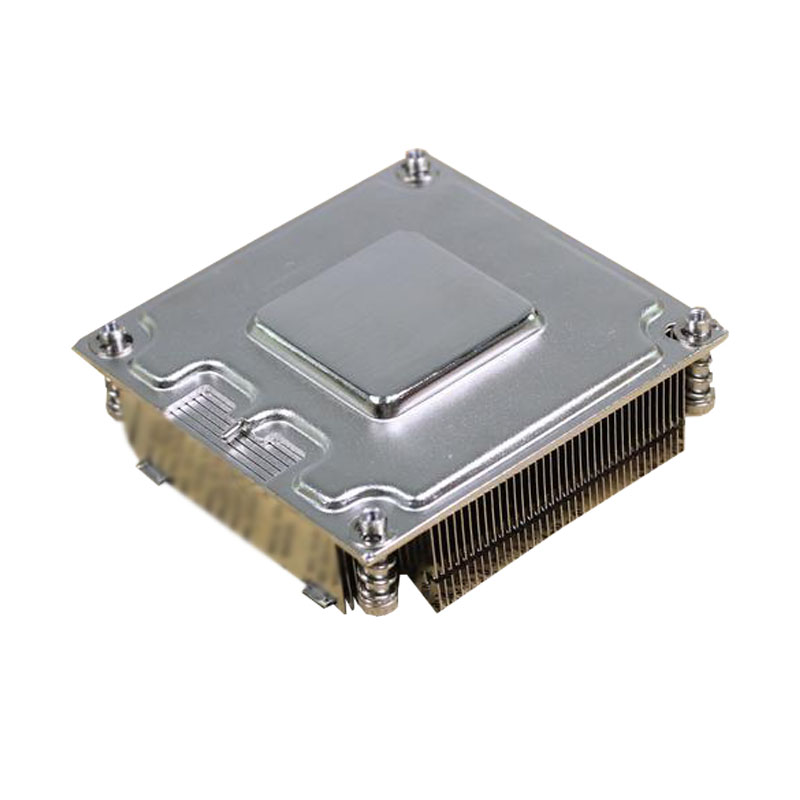

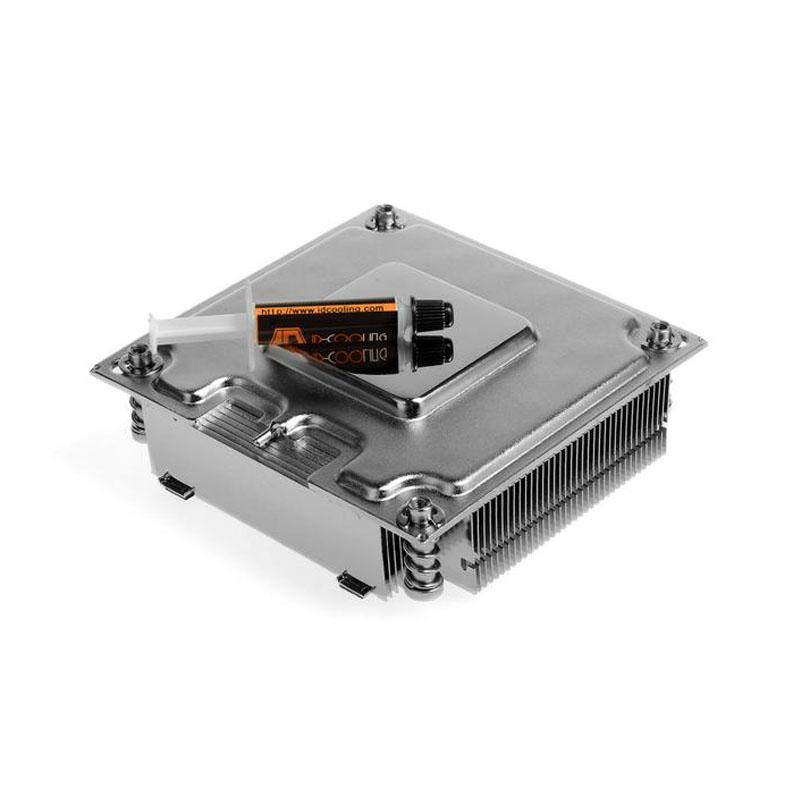

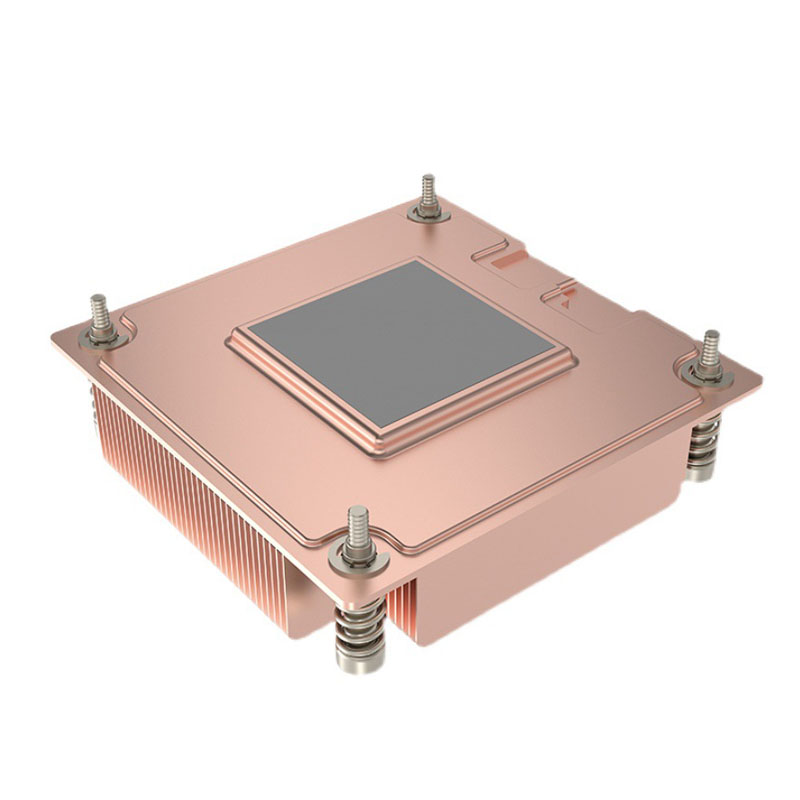

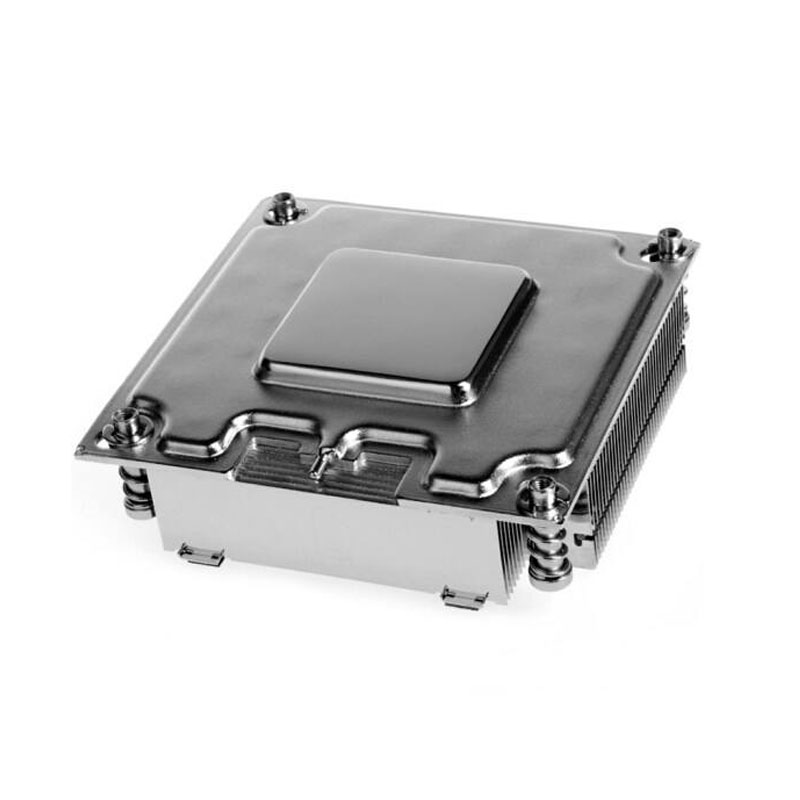

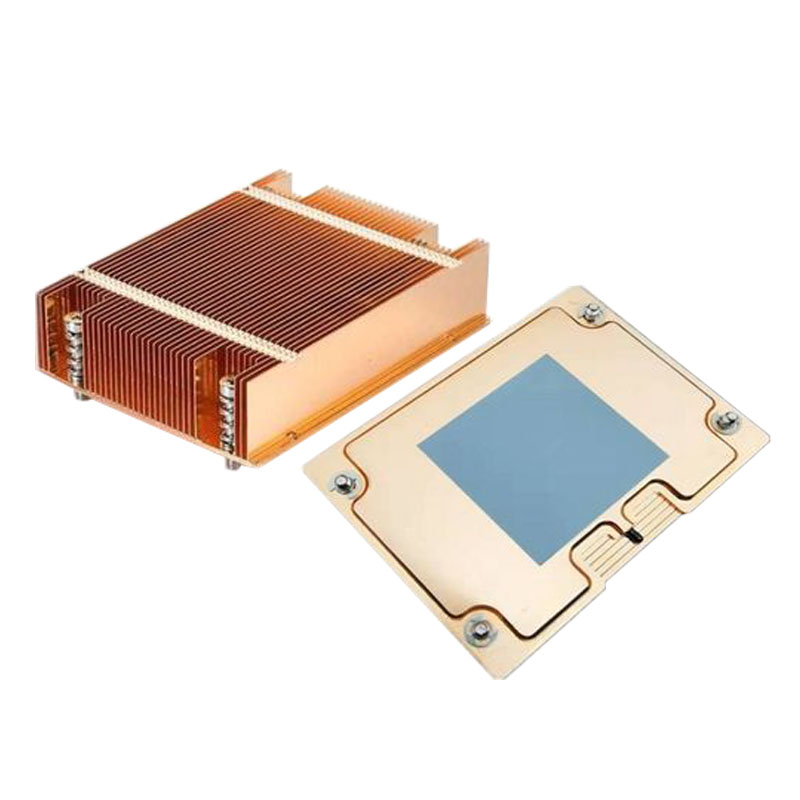

Industrial control computer small PC temperature equalization board heat dissipation module

The Vapor Chamber vacuum chamber heat plate is similar in principle to a heat pipe, but differs in its conduction method. The heat pipe is a one-dimensional linear heat conduction, while the heat in the vacuum chamber heat dissipation plate is conducted on a two-dimensional surface, resulting in higher efficiency.

Characteristics and application scenarios of uniform heating plate:

VC isothermal plate (isothermal plate) is usually used for electronic products that require small volume or rapid heat dissipation. At present, it is mainly used in 5G mobile phones, servers, communication equipment, high-end graphics cards and other products, and is a strong competitor in heat pipe heat dissipation methods.

Characteristics of uniform heating plate:

The liquid at the bottom of the vacuum chamber absorbs heat from the chip, evaporates and diffuses into the vacuum chamber, conducts the heat to the heat dissipation fins, and then condenses into liquid and returns to the bottom.

Advantages of the uniform temperature plate:

Heat is conducted on a two-dimensional surface, thus achieving a relatively high heat dissipation efficiency.
